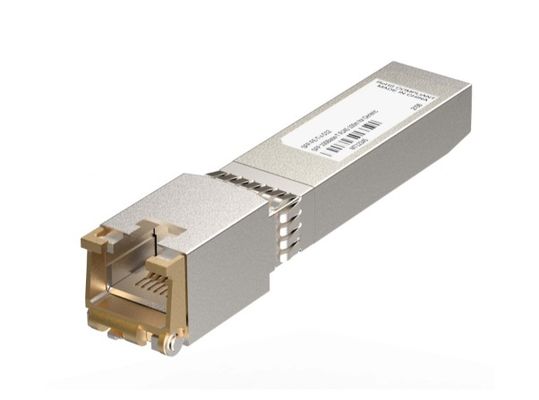

1000BASE-T SFP (Small Form Pluggable) Copper Transceiver Fiber Optic Transceiver Module 100m

1000BASE-T SFP (Small Form Pluggable) Copper Transceiver Fiber Optic Transceiver Module 100m

Brand Name: Optowix
Model Number: MU1D-0XT3
MOQ: 10pcs
Payment Terms: T/T
Supply Ability: 10Kpcs
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
1000BASE -T SFP Copper 100m Transceiver Module
Optowix PN:
MU1D-0XT3
SpeedRate:
1.25
Distrance:
100m
Operating Case Temperature:
0◦C To 70◦C
Packaging Details:
ESD plastic case
Supply Ability:
10Kpcs
Product Description

1000BASE -T SFP Copper 100m Transceiver Module



Features

  • Up to 1.25Gb/s bi-directional data links
  • Compliant with IEEE 802.3z, IEEE 802.3u, IEEE 802.3ab
  • Compliant with SFP MSA
  • Hot-pluggable SFP footprint
  • Support 10/100/1000BASE-T operation in host systems with SGMII interface
  • RJ-45 connector
  • Auto-sense MDI/MDIX
  • Single power supply 3.3V
  • RoHS Compliant
  • Operating case temperature: 0~+70°C

Applications

  • 1.25 Gigabit Ethernet

Standards

  • IEEE 802.3z
  • IEEE 802.3u
  • IEEE 802.3ab
  • SFP MSA

Ordering information



Part Number Description Length
MU1D-0XT3 1000BASE-T SFP Copper RJ-45 Connector 100m Auto Negotiation default mode 100m
  Notes:

1.The product with write protection
2. Module based on Marvell 88E1112 development
3. Operating Temperature Range is case temperature
4. The product enables RX_LOS function,which can be turned on or off according to customer needs
5. The product does not implement receiver suppression
6. Product ID is the short order number of our product standard model



Description

  • MU1D-0XT3 is a small, hot-swappable RJ45 electrical port module, compliant with Gigabit Ethernet standards and SFP Multi-Source Agreement (MSA) standards,supporting 10M/100M/ 1000M transmission rate. CAT5 class network cable transmission distance of up to 100 meters, good electromagnetic compatibility, compatible with various brands of hosts, widely used in data centers and enterprise networks. Access to the PHY chip registers is via the I2C interface. It supports 1000BASE-X auto-negotiation, supports the LINK status via the RX_LOS pin, and supports hosts with SGMII functionality. Meet the certification requirements such as RoHS.


General Specifications


1000BASE-T SFP (Small Form Pluggable) Copper Transceiver Fiber Optic Transceiver Module 100m 0
