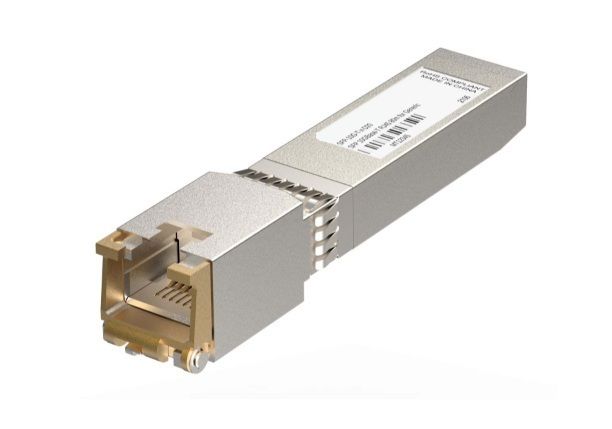

10GBASE-T SFP Copper Transceiver Fiber Optic Transceiver Module 30m

Name: 10GBASE-T SFP Copper Transceiver Fiber Optic Transceiver Module 30m
Brand: Wuhan Optowix Co.,ltd.
SKU: MU1H-0X30
Availability: InStock

Brand Name:	Optowix
Model Number:	MU1H-0X30
MOQ:	10pcs
Payment Terms:	T/T
Supply Ability:	10Kpcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

10GBASE-T SFP Copper Transceiver Module

Optowix PN:

MU1H-0X30

SpeedRate:

10G

Distrance:

30m

Operating Case Temperature:

0◦C To 70◦C

Packaging Details:

ESD plastic case

Supply Ability:

10Kpcs

Product Description

10G BASE-T SFP Copper 30m Transceiver Module

Features

Supports 10GBase-T using 30m Cat 6a/7 cable
Supports 5GBase-T using 70m Cat 5e cable
Supports 2.5GBase-T using 100m Cat 5e cable
Supports 10/100/1000Base-T using 100m Cat 5e cable
Low power consumption (2.3W TYP @10Gbps 30m)
Auto-sense MDI/MDIX
Compliant with IEEE 802.3az
Compliant with SFF-8431 and SFF-8432 MSA
Compliant with RoHS 2.0, Reach, CE, FCC standards
Operating case temperature: 0~+70°C

Applications

10 Gigabit Ethernet

Standards

IEEE 802.3az
SFF-8431
SFF-8432 MSA

Ordering information

Part Number	Description	Length
MU1H-0X30	10M/100M/1000M/2.5G/5G/10GBase-T SFP+ Copper RJ-45 Connector	30m
Notes:
1. Rx with auto squelch. 2. Rx_LOS report copper interface link status. 3. A0 and A2 table 00/01 with wirite protection function. 4. Operating Temperature Range is case temperature.

Description

MU1H-0X30 is a small hot-pluggable RJ45 electrical port module, compliant with 10 Giga-bit Ethernet standards and SFP Multi-Source Agreement (MSA) standards, supporting 10G transmission rate,transfer distances up to 30 meters using Cat 6a/7 network cable, it is also backward compatible with 10M/100M/1000M/2.5G/5GBase-T applications. Low power consumption (2.3W TYP @ 10Gbps 30m), compatible with various brands of hosts, widely used in data centers and enterprise networks. Comply with certification requirements such as RoHS 2.0, Reach, CE and FCC.
The product is based on a standard RJ45 interface, compatible with traditional networks, the Ethernet transfer rates can be increased without changing existing wiring. It is a lowcost alternative to Ethernet upgrades.

General Specifications

10GBASE-T SFP Copper Transceiver Fiber Optic Transceiver Module 30m 0
