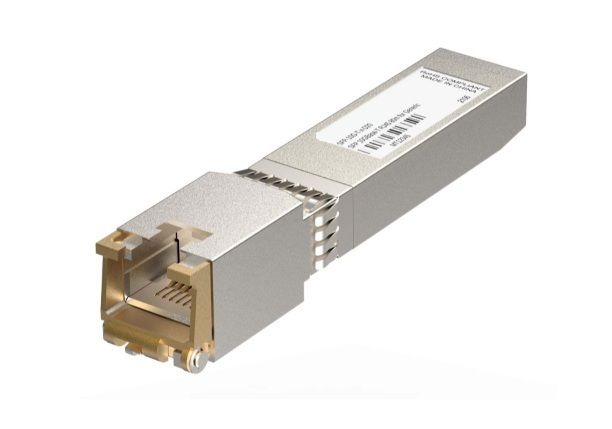

10GBASE-T SFP Copper Transceiver Low Power Version Fiber Optic Transceiver Module 80m

10GBASE-T SFP Copper Transceiver Low Power Version Fiber Optic Transceiver Module 80m

Brand Name: Optowix
Model Number: MU1H-0X80
MOQ: 10pcs
Payment Terms: T/T
Supply Ability: 10Kpcs
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
10GBASE-T SFP Copper Transceiver Low Power Version Module
Optowix PN:
MU1H-0X80
SpeedRate:
10G
Distrance:
80m
Operating Case Temperature:
0◦C To 70◦C
Packaging Details:
ESD plastic case
Supply Ability:
10Kpcs
Product Description

10G BASE-T SFP Copper 80m Transceiver Module



Features

  • Low power consumption (1.6W @ 10Gbps 30m,2.0W @ 10Gbps 80m)

  • Supports 10GBase-T using 80m Cat 6a/7 cable
  • Supports 5GBase-T using 100m Cat 5e cable
  • Supports 2.5GBase-T using 100m Cat 5e cable
  • Supports 100/1000Base-T using 100m Cat 5e cable
  • Auto-sense MDI/MDIX
  • Compliant with IEEE 802.3az
  • Compliant with SFF-8431 and SFF-8432 MSA
  • Compliant with RoHS 2.0, Reach, CE, FCC standards
  • Operating case temperature: 0~+70°C



Applications

  • 10 Gigabit Ethernet



Standards

  • IEEE 802.3az
  • SFF-8431
  • SFF-8432 MSA

Ordering information



Part Number Description Length
MU1H-0X80 100M/1000M/2.5G/5G/10GBase-T SFP+ Copper RJ-45 Connector 80m
  Notes:

1. Rx with auto squelch.

2. Rx_LOS report copper interface link status.

3. A0 and A2 table 00/01 with wirite protection function.

4. Operating Temperature Range is case temperature.



Description

  •  MU1H-0X80 is a copper transceiver, its biggest feature are ultra low power consumption and longer transmission distance (1.6W @ 10Gbps 30m, 2.0W @ 10Gbps 80m).
  • MU1H-0X80 is a small hot-pluggable RJ45 port module, compliant with 10 Giga-bit Ethernet standards and SFP Multi-Source Agreement (MSA) standards, transfer distances up to 80 meters using Cat 6a/7 network cable, it is also compatible with 100M/1000M/2.5G/5G/10G-T applications, and compatible with various brands of hosts, widely used in data centers and enterprise networks. Comply with certification requirements such as RoHS 2.0, Reach, CE and FCC. The product is based on a standard RJ45 interface, compatible with traditional networks, the Ethernet transfer rates can be increased without changing existing wiring. It is a lowcost alternative to Ethernet upgrades.

General Specifications


10GBASE-T SFP Copper Transceiver Low Power Version Fiber Optic Transceiver Module 80m 0
