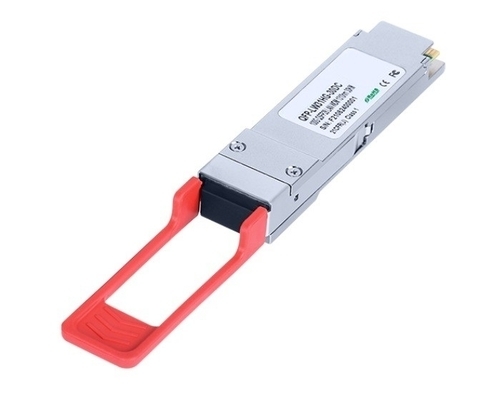

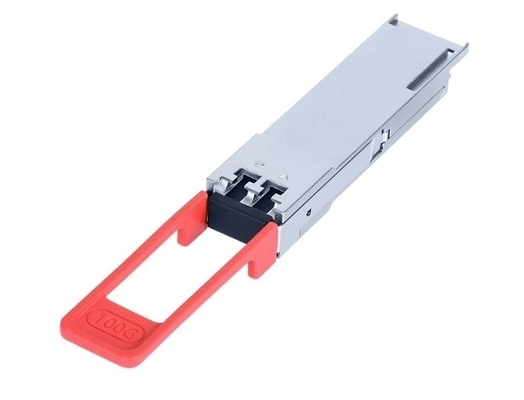

100G QSFP28 ER4 Lite 1310nm 30km Transceiver Fiber Optic Transceiver Module

Name: 100G QSFP28 ER4 Lite 1310nm 30km Transceiver Fiber Optic Transceiver Module
Brand: Wuhan Optowix Co.,ltd.
SKU: MK1Q-ERTD
Availability: InStock

Brand Name:	Optowix
Model Number:	MK1Q-ERTD
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10Kpcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Optowix PN:

MK1Q-ERTD

Product Name:

100G QSFP28 Transceiver, Single Mode, 30km Reach,Module

SpeedRate:

100G

Distrance:

30km

Interface:

Duplex LC

Environment:

0°C~+70°C

Packaging Details:

ESD plastic case

Supply Ability:

10Kpcs

Highlight:

QSFP28 ER4 Lite transceiver 30km

100G fiber optic transceiver module

1310nm transceiver with 30km range

Product Description

100G QSFP28 ER4 Lite 1310nm 30km Transceiver Fiber Optic Transceiver Module

Product Attributes

Attribute	Value
Optowix PN	MK1Q-ERTD
Product Name	100G QSFP28 Transceiver, Single Mode, 30km Reach,Module
SpeedRate	100G
Distance	30km
Interface	Duplex LC
Environment	0°C~+70°C

Product Description

100Gbps QSFP28 Transceiver, Single Mode, 30km Reach

Features

Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rates
Maximum link length of 30km on Single Mode Fiber (SMF)
Power dissipation < 5W
Built-in digital diagnostic functions
Built-in CDR
4x25.78Gb/s DFB-based LAN-WDM transmitter
Duplex LC receptacles
Single 3.3V power supply
RoHS compliant
Operating case temperature: 0~+70°C

Applications

100GBASE-ER4 100G Ethernet
100GE 4WDM-30 Applications

Standards

QSFP28 MSA
IEEE 802.3ba

Ordering Information

Part Number	Product Description
MK1Q-ERTD	100G QSFP28 ER4 LC 30km, 0°C~+70°C

Description

MK1Q-LRTC is 100Gb/s QSFP28 ER4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 ER4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.

Absolute Maximum Ratings

Module performance is not guaranteed beyond the operating range. Exceeding the limits below may damage the transceiver module permanently.

Recommended Operating Condition

Electrical Specification

Optical Specification
