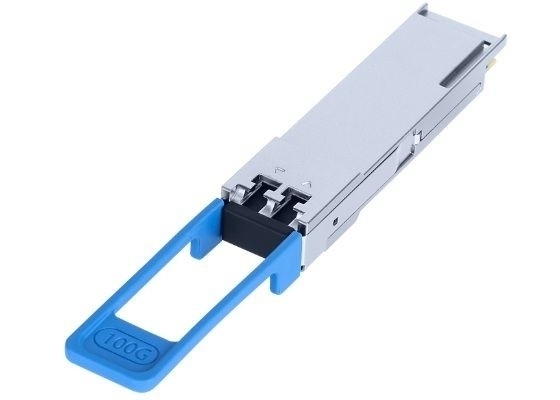

100G QSFP28 CWDM4 2km Transceiver Fiber Optic Transceiver Module

100G QSFP28 CWDM4 2km Transceiver Fiber Optic Transceiver Module

Brand Name: Optowix
Model Number: MK1Q-CDT8
MOQ: 1
Payment Terms: T/T
Supply Ability: 10Kpcs
Detail Information
Place of Origin:
China
Optowix PN:
MK1Q-CDT8
Product Name:
100Gbps QSFP28 Transceiver, Single Mode, 2km Reach,Module
SpeedRate:
100G
Distrance:
2km
Wavelength:
CWDM4
Interface:
Duplex LC
Environment:
0°C~+70°C
Packaging Details:
ESD plastic case
Supply Ability:
10Kpcs
Highlight:

100G QSFP28 CWDM4 transceiver module

,

fiber optic transceiver with 2km range

,

QSFP28 CWDM4 optical transceiver module

Product Description
100G QSFP28 CWDM4 2km Transceiver Fiber Optic Transceiver Module
Product Specifications
Attribute Value
Optowix PN MK1Q-CDT8
Product Name 100Gbps QSFP28 Transceiver, Single Mode, 2km Reach, Module
SpeedRate 100G
Distance 2km
Wavelength CWDM4
Interface Duplex LC
Environment 0°C~+70°C
Product Description

100Gbps QSFP28 Transceiver, Single Mode, 2km Reach

Features
  • Hot-pluggable QSFP28 form factor
  • Supports 25G/28G Dual-Rate operation
  • Maximum link length of 2km on Single Mode Fiber (SMF)
  • Power dissipation < 3.5W
  • Built-in digital diagnostic functions
  • Supports 40G/100G Dual Mode operation with CDR auto-bypass mode
  • 4x25.78Gb/s DFB-based CWDM transmitter
  • Duplex LC receptacles
  • Single 3.3V power supply
  • RoHS compliant
  • Operating case temperature: 0~+70°C
Applications
  • 100G CWDM4 applications with FEC
  • High-density datacenter switches, routers
Standards
  • QSFP28 MSA
  • IEEE 802.3ba
Ordering Information
Part Number Product Description
MK1Q-CDT8 100G QSFP28 CWDM4 LC 2km, 0°C~+70°C
Description
  • MK1Q-CDT8 is 100Gb/s QSFP28 CWDM4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 CWDM4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.
Absolute Maximum Ratings

Module performance is not guaranteed beyond the operating range. Exceeding the limits below may damage the transceiver module permanently.

100G QSFP28 CWDM4 2km  Transceiver Fiber Optic Transceiver Module 0
Recommended Operating Condition
100G QSFP28 CWDM4 2km  Transceiver Fiber Optic Transceiver Module 1
Electrical Specification
100G QSFP28 CWDM4 2km  Transceiver Fiber Optic Transceiver Module 2
Optical Specification
100G QSFP28 CWDM4 2km  Transceiver Fiber Optic Transceiver Module 3
