| Brand Name: | Optowix |
| Model Number: | MCP-1Q-LR4LR |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10Kpcs |
| Attribute | Value |
|---|---|

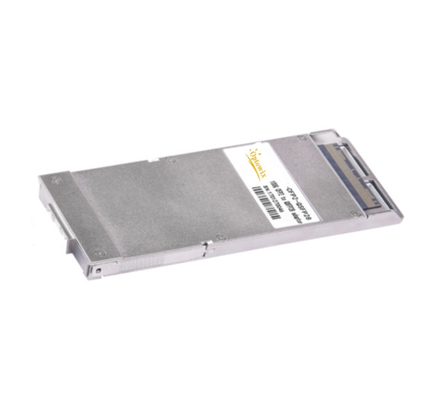

| Product Name | CFP2-QSFP28 Adaptor Module |
| SpeedRate | 100g |
| TX | 4x25G Vcsel Laser |
| RX | 4x25G PIN Receiver |
| Distance | 100m |
| Warranty | 12 Months |
| Application | Datacenter |
| Interface | MPO |
| CFP2 port | MDIO |
|---|---|
| QSFP28 port | I2C |
| Dimensions | 12.4mm Height x 41.5mm Width x 108.2mm Depth |
|---|
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
|---|---|---|---|---|---|---|
| Signal Rate Per Lane | 25.78 | Gb/s | ||||
| Differential data output swing per lane | Vout,pp | CAUI-4 as defined by IEEE P802.3bm | mV | |||
| Data output rise time | tr | ps | ||||
| Data output fall time | tf | ps | ||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
|---|---|---|---|---|---|---|
| Signal Rate Per Lane | 25.78 | Gb/s | ||||
| Frequency offset | -100 | 100 | ppm | 100G Ethernet | ||
| -20 | 20 | ppm | OTU4 | |||
| Input differential impedance | Rin | CAUI-4 as defined by IEEE P802.3bm | Ω | |||
| Differential data input swing per lane | Vin,pp | mV | ||||
| Data input rise time tolerance | tr | ps | ||||
| Data input fall time tolerance | tf | ps | ||||
| Part. No | Specifications |
|---|---|
| MCP-1Q-LR4LR | CFP2 to QSFP28 Converter Operating Temperature: 0~70℃ RoHS compliant |
