| Brand Name: | Optowix |
| Model Number: | MLF-1D-131LR |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 40Kpcs |
| Attribute | Value |
|---|---|
| Product Name | 100G LR4 QSFP28 |
| SpeedRate | 100G |
| TX | 4X25G DML Laser |
| RX | 4X25G PIN receiver |
| Distance | 10km |
| Warranty | 12 Months |
| Application | Datacenter |
| Interface | LC duplex |

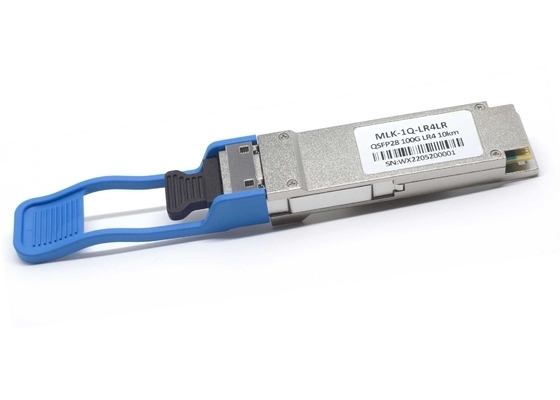

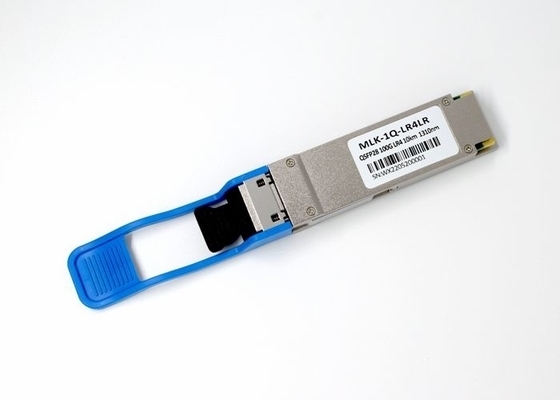

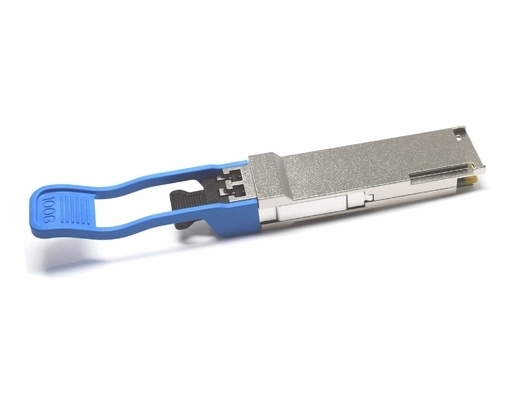

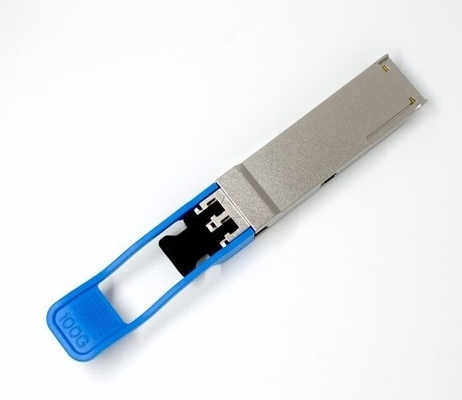

100G LR4 10km QSFP28 Module Optical Transceiver Module
| Part. No | Pack | Rate (Gbps) | Tx (nm) | P (dBm) | Rx | S (dBm) | Top (℃) | Reach (km) | Other |
|---|---|---|---|---|---|---|---|---|---|
| MLK-1Q-LR4LR | QSFP28 | 4x25.78 | 1295.56 1300.05 1304.58 1309.14 |
-4.3~4.5 | PIN | <-8.6 | 0~70 | 10 | RoHS |
