| Brand Name: | Optowix |
| Model Number: | MK1Q-LRTG |
| MOQ: | 10 |
| Payment Terms: | T/T |
| Supply Ability: | 10Kpcs |
| Attribute | Value |
|---|---|
| Optowix PN | MK1Q-LRTG/MK2Q-LRTG |

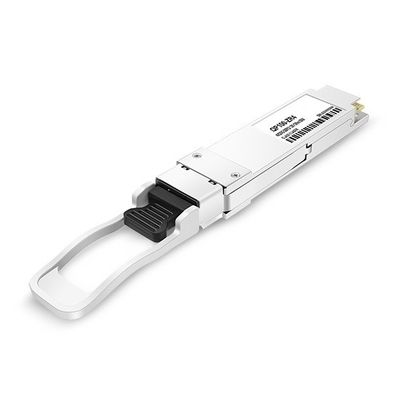

| Product Name | 100G ZR4 80km QSFP28 module |
| SpeedRate | 100G |
| TX | 4X25G EML Laser |
| RX | 4X25G SOA receiver |
| Distance | 80km |
| Warranty | 12 Months |
| Application | Datacenter |
| Interface | LC duplex |
| Part. No | Specifications |
|---|---|
| MK1Q-LRTG | QSFP28 | 4x25.78 | 1295.56 | 1~6.5 | SOA | -27 | 0~70 | 80 | RoHS 1300.05 1304.58 1309.14 |
| MK2Q-LRTG | QSFP28 | 4X25.78 | 1295.56 | 1~6.5 | SOA | -27 | -40~85 | 80 | RoHS 1300.05 1304.58 1309.14 |
MK1Q-LRTG is designed for 80km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial interface. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.
| Parameter | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| Storage Temperature | TS | -40 | 85 | °C |
| Maximum Supply Voltage | VCC | -0.5 | 3.6 | V |
| Operating Relative Humidity | RH | 85 | % |
