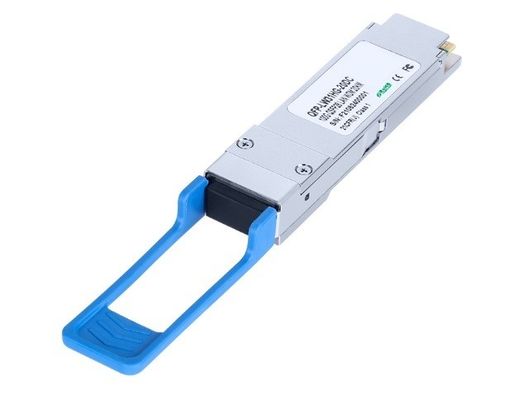

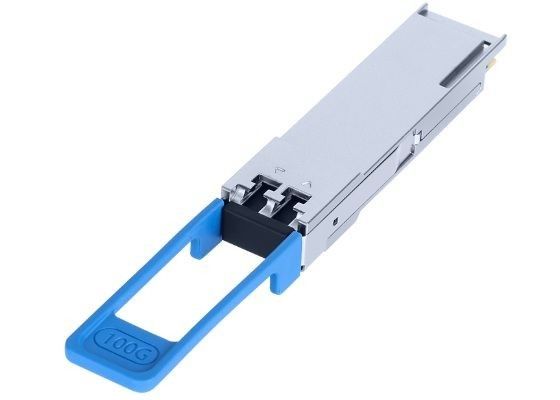

100G QSFP28 LR4 20km Transceiver Fiber Optic Transceiver Module

100G QSFP28 LR4 20km Transceiver Fiber Optic Transceiver Module

Brand Name: Optowix
Model Number: MK1Q-LRTC
MOQ: 1
Payment Terms: T/T
Supply Ability: 10Kpcs
Detail Information
Place of Origin:
China
Optowix PN:
MK1Q-LRTC
Product Name:
100Gbps QSFP28 Transceiver, Single Mode, 20km Reach,Module
SpeedRate:
100G
Distrance:
20km
Interface:
Duplex LC
Environment:
0°C~+70°C
Packaging Details:
ESD plastic case
Supply Ability:
10Kpcs
Product Description

100Gbps QSFP28 Transceiver, Single Mode, 20km Reach


Features
  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rates
  • Maximum link length of 20km on Single Mode Fiber (SMF)
  • Power dissipation < 3.5W
  • Built-in digital diagnostic functions
  • Built-in CDR
  • 4x25.78Gb/s DFB-based LAN-WDM transmitter
  • Duplex LC receptacles
  • Single 3.3V power supply
  • RoHS compliant
  • Operating case temperature: 0~+70°C

Applications

  • 100GBASE-LR4 100G Ethernet
Standards
  • QSFP28 MSA
  • IEEE 802.3ba
Ordering Information

Part Number Product Description
MK1Q-LRTC 100G QSFP28 LAN WDM4  LC 20km, 0°C~+70°C


Description

  • MK1Q-LRTC is 100Gb/s QSFP28 LR4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 LR4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber
Absolute Maximum Ratings

Module performance is not guaranteed beyond the operating range.

Exceeding the limits below may damage the transceiver module permanently.

   100G QSFP28 LR4 20km  Transceiver Fiber Optic Transceiver Module 0





Recommended Operating Condition

100G QSFP28 LR4 20km  Transceiver Fiber Optic Transceiver Module 1



Electrical Specification


100G QSFP28 LR4 20km  Transceiver Fiber Optic Transceiver Module 2



Optical Specification



100G QSFP28 LR4 20km  Transceiver Fiber Optic Transceiver Module 3
