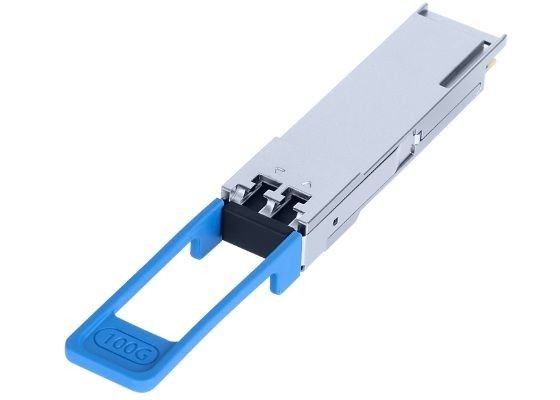

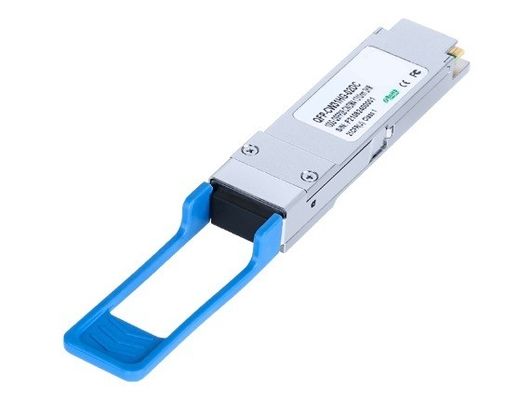

100G QSFP28 CWDM4 2km Transceiver Fiber Optic Transceiver Module

Name: 100G QSFP28 CWDM4 2km Transceiver Fiber Optic Transceiver Module
Brand: Wuhan Optowix Co.,ltd.
SKU: MK1Q-CDT8
Availability: InStock

Brand Name:	Optowix
Model Number:	MK1Q-CDT8
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10Kpcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Optowix PN:

MK1Q-CDT8

Product Name:

100Gbps QSFP28 Transceiver, Single Mode, 2km Reach,Module

SpeedRate:

100G

Distrance:

2km

Wavelength:

CWDM4

Interface:

Duplex LC

Environment:

0°C~+70°C

Packaging Details:

ESD plastic case

Supply Ability:

10Kpcs

Product Description

100Gbps QSFP28 Transceiver, Single Mode, 2km Reach

Features

Hot-pluggable QSFP28 form factor
Supports 25G/28G Dual-Rate operation
Maximum link length of 2km on Single Mode Fiber (SMF)
Power dissipation < 3.5W
Built-in digital diagnostic functions
Supports 40G/100G Dual Mode operation with CDR auto-bypass mode
4x25.78Gb/s DFB-based CWDM transmitter
Duplex LC receptacles
Single 3.3V power supply
RoHS compliant
Operating case temperature: 0~+70°C

Applications

100G CWDM4 applications with FEC
High-density datacenter switches, routers

Standards

QSFP28 MSA
IEEE 802.3ba

Ordering Information

Part Number

Product Description

MK1Q-CDT8

100G QSFP28 CWDM4 LC 2km, 0°C~+70°C

Description

MK1Q-CDT8 is 100Gb/s QSFP28 CWDM4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 CWDM4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.

Absolute Maximum Ratings

Module performance is not guaranteed beyond the operating range.
Exceeding the limits below may damage the transceiver module permanently.

100G QSFP28 CWDM4 2km Transceiver Fiber Optic Transceiver Module 0

Recommended Operating Condition

Electrical Specification

100G QSFP28 CWDM4 2km Transceiver Fiber Optic Transceiver Module 2

Optical Specification

100G QSFP28 CWDM4 2km Transceiver Fiber Optic Transceiver Module 3
