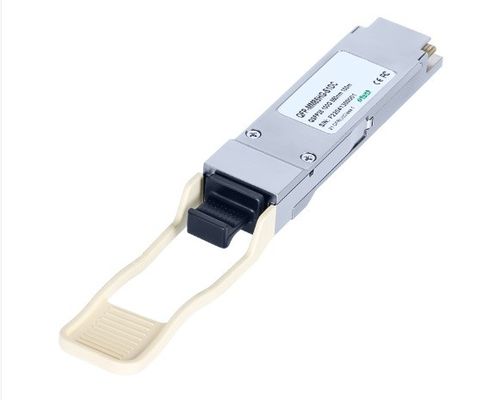

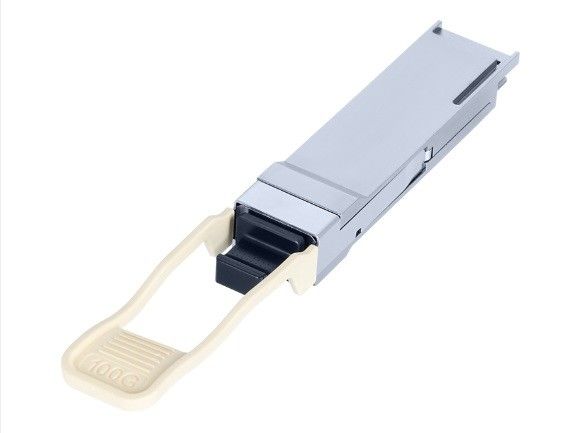

100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module

Name: 100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module
Brand: Wuhan Optowix Co.,ltd.
SKU: MK1Q-85T3
Availability: InStock

Brand Name:	Optowix
Model Number:	MK1Q-85T3
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10Kpcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Optowix PN:

MK1Q-85T3

Product Name:

100Gbps QSFP28 Transceiver, Single Mode, 100m Reach,Module

SpeedRate:

100G

Distrance:

100m

Wavelength:

850nm

Interface:

MPO

Environment:

0°C~+70°C

Packaging Details:

ESD plastic case

Supply Ability:

10Kpcs

Product Description

100Gbps QSFP28 Transceiver, Single Mode, 100m Reach

Features

Four-channel full-duplex transceiver
25.78Gb/s data rate per channel
Maximum link length of 70m on OM3(MMF) ,100m on OM4 (MMF)
Power dissipation < 2.5W
Built-in digital diagnostic functions
Built-in CDR
850nm VCSEL transmitter
Good EMI performance
Single 3.3V power supply
RoHS compliant
Operating case temperature: 0~+70°C

Applications

100GBASE-SR4 100G Ethernet
40GBASE-SR4 40G Ethernet
High-speed interconnects within/between switches, routers and transport equipment
Server-server clusters
Super-computinginterconnections
Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane

Standards

QSFP28 MSA
IEEE 802.3bm

Ordering Information

Part Number

Product Description

MK1Q-85T3

100G QSFP28 850nm MPO 100m, 0°C~+70°C

Description

MK1Q-85T3 is 100Gb/s QSFP28 SR4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3bm. QSFP28 SR4 is an assembly of four full-duplex lanes, where each lane is capable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 103.125Gb/s.

Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of the data sheet. Exposure to absolute maximum ratings will cause permanent damage and/or adversely affect device reliability.

100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module 0

Recommended Operating Condition

Electrical Specification

100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module 2

Optical Specification

100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module 3
