Home / Products / Fiber Optical Transceivers /

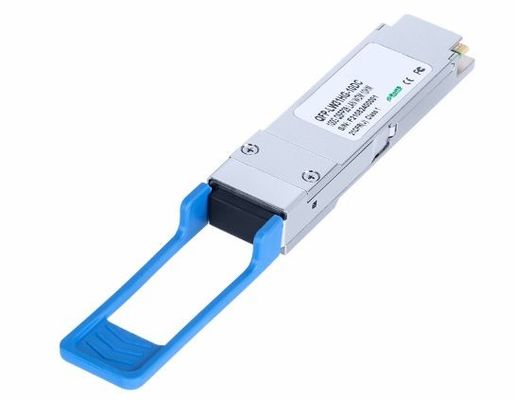

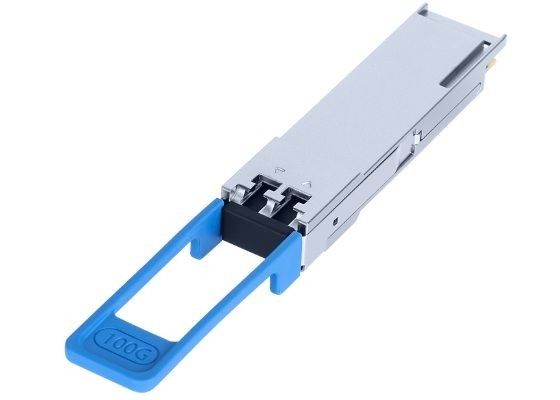

100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module

100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module

100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module

Brand Name: Optowix
Model Number: MK1Q-13TA
MOQ: 1
Payment Terms: T/T
Supply Ability: 10Kpcs
Detail Information
Product Description
Detail Information
Place of Origin:
China
Optowix PN:
MK1Q-13TA
Product Name:
100Gbps QSFP28 Transceiver, Single Mode, 10km Reach,Module
SpeedRate:
100G
Distrance:
10km
Interface:
Duplex LC
Wavelength:
1310nm
Environment:
0ºC ~ 70ºC
Packaging Details:
ESD plastic case
Supply Ability:
10Kpcs
Product Description

100Gbps QSFP28 Transceiver, Single Mode, 10km Reach


Features
  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rates
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • Power dissipation < 3.5W
  • Built-in digital diagnostic functions
  • Built-in CDR
  • 4x25.78Gb/s DFB-based LAN-WDM transmitter
  • Duplex LC receptacles
  • Single 3.3V power supply
  • RoHS compliant
  • Operating case temperature: 0~+70°C

Applications

  • 100GBASE-LR4 100G Etherne
Standards
  • QSFP28 MSA
  • IEEE 802.3ba
Ordering Information

Part Number Product Description
MK1Q-13TA 100G QSFP28  1310nm  10km, 0°C~+70°C


Description

  • MK1Q-13TA is 100Gb/s QSFP28 LR4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 LR4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.
Absolute Maximum Ratings


   100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module 0



Recommended Operating Conditions


100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module 1



Electrical Specification


100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module 2



Optical Specification



100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module 3
