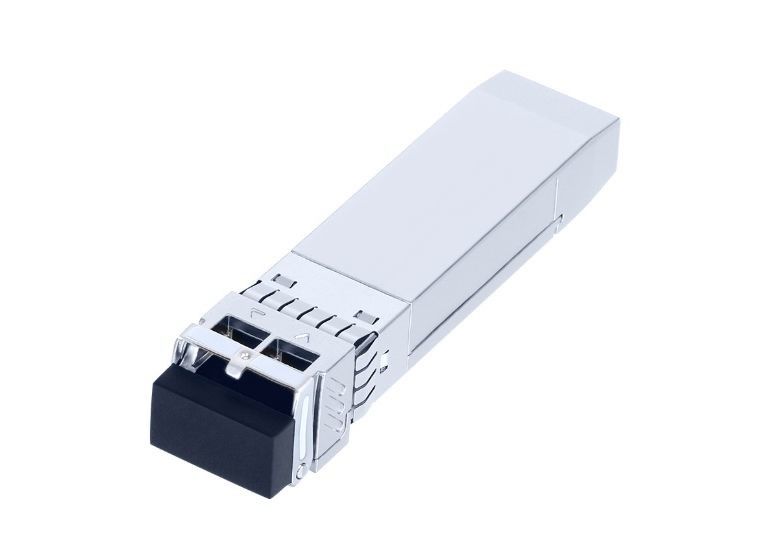

10G SFP+ DWDM 1528.77~1563.05nm 80km Transceiver Fiber Optic Transceiver Module

10G SFP+ DWDM 1528.77~1563.05nm 80km Transceiver Fiber Optic Transceiver Module

10G SFP+ DWDM 1528.77~1563.05nm 80km Transceiver Fiber Optic Transceiver Module

Brand Name: Optowix
Model Number: MF1H-DWTG-Dxx
MOQ: 1
Payment Terms: T/T
Supply Ability: 10Kpcs
Detail Information
Product Description
Detail Information
Place of Origin:
China
Optowix PN:
MF1H-DWTG-Dxx
Product Name:
10.3Gbps SFP+ DWDM Transceiver, Single Mode, 80km Reach, Module
SpeedRate:
10G
Distrance:
80km
Interface:
Duplex LC
Wavelength:
DWDM 1528.77~1563.05nm
Environment:
0ºC ~ 70ºC
Packaging Details:
ESD plastic case
Supply Ability:
10Kpcs
Product Description

10.3Gbps SFP+ DWDM Transceiver, Single Mode, 40km Reach


Features
  • Supports up to 10.7Gbps bit rates
  • Hot-pluggable SFP+ footprint
  • 100GHz ITU, C Band DWDM Cooled EML laser and APD photodiode, Up to 80km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real Time Digital Diagnostic Monitoring
  • Operating case temperature:  Standard: 0 to +70°C​

Applications

  • 10Gbps DWDM Optical systems
  • 10GBASE-ZR at 10.3125Gbps
  • 10GBASE-ZW at 9.953Gbps
  •  LTE systems
  •  Other Optical links​
Standards
  • SFP+ MSA
  • SFF-8472
Ordering Information

Part Number
Product Description
MF1H-DWTG-Dxx
SFP+ 10G DWDM 1528.77~1563.05nm 80km 0ºC ~ +70ºC,

10G SFP+ DWDM 1528.77~1563.05nm 80km Transceiver Fiber Optic Transceiver Module 0

Description

  • The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF.
  • The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
  • The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings

10G SFP+ DWDM 1528.77~1563.05nm 80km Transceiver Fiber Optic Transceiver Module 1



Recommended Operating Conditions

Parameter
Symbol
Min
Typical
Max
Unit
Operating Case
Tc
0

+70
°C
Power Supply Voltage
Vcc
3.135
3.30
3.465
V
Power Supply Current
Icc


600
mA
Data Rate

8.0
10.3
10.7
Gbps



Optical and Electrical Characteristics

10G SFP+ DWDM 1528.77~1563.05nm 80km Transceiver Fiber Optic Transceiver Module 2
