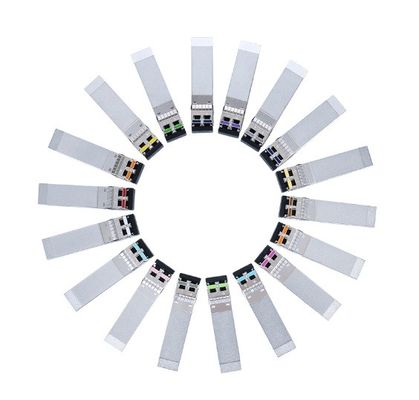

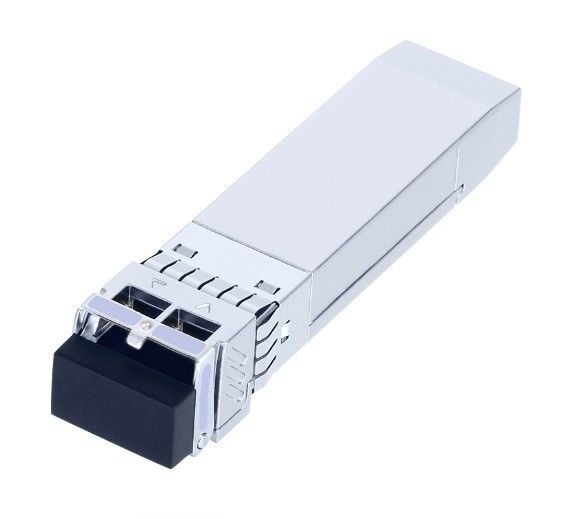

10G SFP+ CWDM 1590nm~1610nm 5km Transceiver Fiber Optic Transceiver Module

10G SFP+ CWDM 1590nm~1610nm 5km Transceiver Fiber Optic Transceiver Module

10G SFP+ CWDM 1590nm~1610nm 5km Transceiver Fiber Optic Transceiver Module

Brand Name: Optowix
Model Number: MF1H-CWT9-Cxx
MOQ: 1
Payment Terms: T/T
Supply Ability: 10Kpcs
Detail Information
Product Description
Detail Information
Place of Origin:
China
Optowix PN:
MF1H-CWT9-Cxx
Product Name:
10.3Gbps SFP+ CWDM Transceiver, Single Mode, 5km Reach, Module
SpeedRate:
10G
Distrance:
5km
Interface:
Duplex LC
Wavelength:
CWDM, 1590nm~1610nm
Environment:
0ºC ~ 70ºC
Packaging Details:
ESD plastic case
Supply Ability:
10Kpcs
Product Description

10.3Gbps SFP+ CWDM Transceiver, Single Mode, 5km Reach


Features
  • Supports up to 10.7Gbps bit rates
  • Hot-pluggable SFP+ footprint
  • CWDM DFB laser and PIN photodiode, Up to 5km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real Time Digital Diagnostic Monitoring
  • Operating case temperature:  Standard: 0 to +70°C​

Applications

  • 10Gbps CWDM Optical systems
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  •  LTE systems
  •  Other Optical links​
Standards
  • SFP+ MSA
  • SFF-8472
Ordering Information

Part Number Product Description
MF1H-CWT9-C17 SFP+ 10G CWDM 1590nm 5km 0ºC ~ 70°C,
MF1H-CWT9-C18 SFP+ 10G CWDM 1610nm 5km 0°C ~ 70°C,





Description

  • The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 10km transmission distance with SMF.
  • The transceiver consists of three sections: a uncooled DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
  • The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings

10G SFP+ CWDM 1590nm~1610nm 5km Transceiver Fiber Optic Transceiver Module 0



Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case Tc 0   +70 °C
Power Supply Voltage Vcc 3.135 3.30 3.465 V
Power Supply Current Icc     320 mA
Data Rate   1.0 10.3 10.7 Gbps



Optical and Electrical Characteristics

10G SFP+ CWDM 1590nm~1610nm 5km Transceiver Fiber Optic Transceiver Module 1
