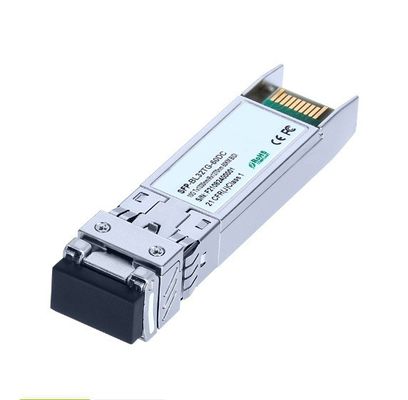

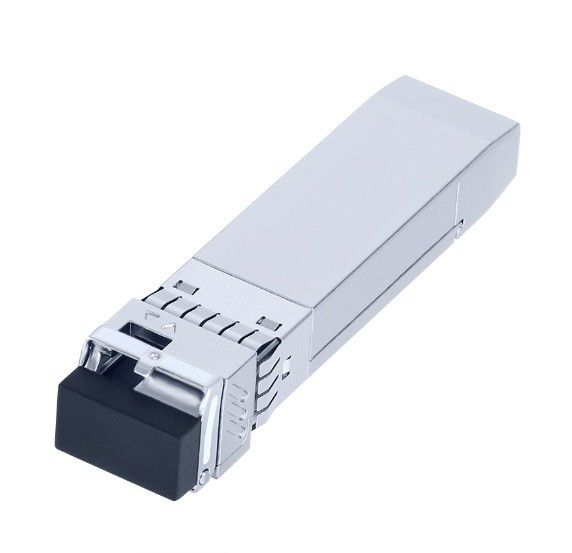

10G SFP+ BIDI Tx1330nmRx1270nm 60km Transceiver Fiber Optic Transceiver Module

10G SFP+ BIDI Tx1330nmRx1270nm 60km Transceiver Fiber Optic Transceiver Module

10G SFP+ BIDI Tx1330nmRx1270nm 60km Transceiver Fiber Optic Transceiver Module

Brand Name: Optowix
Model Number: MF1H-BDTF-B32
MOQ: 1
Payment Terms: T/T
Supply Ability: 10Kpcs
Detail Information
Product Description
Detail Information
Place of Origin:
China
Optowix PN:
MF1H-BDTF-B32
Product Name:
10.3Gbps SFP+ BIDI Transceiver, Single Mode, Module
SpeedRate:
10G
Distrance:
60km
Interface:
Single LC
Wavelength:
Tx1330nm / Rx1270nm
Environment:
0ºC ~ 70ºC
Packaging Details:
ESD plastic case
Supply Ability:
10Kpcs
Product Description

10.3Gbps SFP+ Transceiver, Single Mode, 80km Reach


Features
  • Supports up to 10.7Gbps bit rates
  • Hot-pluggable SFP+ footprint
  • 1330nm DFB laser and APD photodiode, Up to 60km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
  •  Compatible with RoHS
  • Single +3.3V power supply
  •  Real Time Digital Diagnostic Monitoring
  •  Operating case temperature:   Standard: 0 to +70°C

Applications

  • 10Gbps Optical systems
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  •  LTE systems
  •  Other Optical links​
Standards
  • SFP+ MSA
  • SFF-8472
Ordering Information

Part Number Product Description
MF1H-BDTF-B32 SFP+ 10G BIDI Tx1330nm Rx1270nm  60km , 0ºC ~ 70ºC



Description

  • The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 60km transmission distance with SMF.
  • The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
  • The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings

10G SFP+ BIDI Tx1330nmRx1270nm 60km Transceiver Fiber Optic Transceiver Module 0



Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case Tc 0   +70 °C
Power Supply Voltage Vcc 3.135 3.30 3.465 V
Power Supply Current Icc     450 mA
Data Rate   1.0 10.3 10.7 Gbps







Optical and Electrical Characteristics

10G SFP+ BIDI Tx1330nmRx1270nm 60km Transceiver Fiber Optic Transceiver Module 1
