Home / Products / Fiber Optical Transceivers /

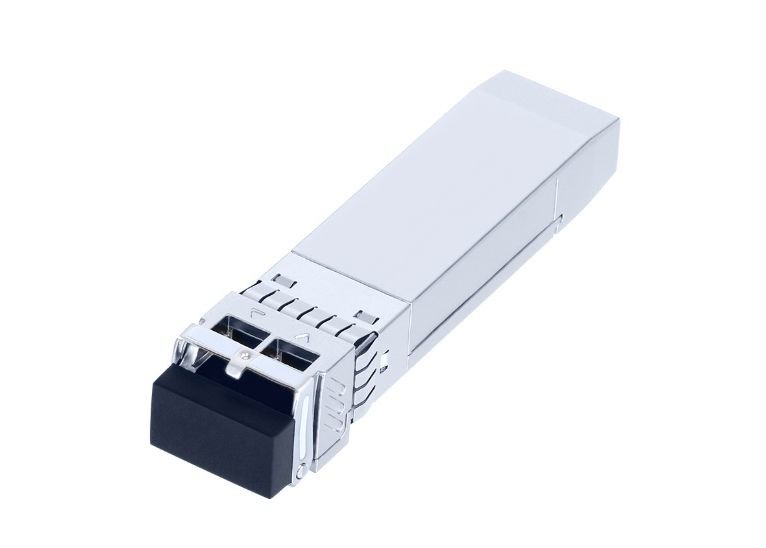

10G SFP+ 1550nm 80km Transceiver Fiber Optic Transceiver Module

10G SFP+ 1550nm 80km Transceiver Fiber Optic Transceiver Module

10G SFP+ 1550nm 80km Transceiver Fiber Optic Transceiver Module

Brand Name: Optowix
Model Number: MF1H-15TG
MOQ: 1
Payment Terms: T/T
Supply Ability: 10Kpcs
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
10.3Gbps SFP+ Transceiver, Single Mode, 80km Reach
SpeedRate:
10G
Distrance:
80km
Packaging Details:
ESD plastic case
Supply Ability:
10Kpcs
Product Description

10.3Gbps SFP+ Transceiver, Single Mode, 80km Reach


Features
  • Supports up to 10.7Gbps bit rates
  • Hot-pluggable SFP+ footprint
  • 1550nm Cooled EML laser and APD photodiode, Up to 80km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real Time Digital Diagnostic Monitoring
  • Operating case temperature:
  • Standard: 0 to +70°C

Applications

  • 10Gbps Optical systems
  • 10GBASE-ZR at 10.3125Gbps
  • 10GBASE-ZW at 9.953Gbps
  •  LTE systems
  •  Other Optical links​
Standards
  • SFP+ MSA
  • SFF-8472
Ordering Information

Part Number Product Description
MF1H15TG SFP+ 10G 1550nm 80km , 0ºC ~ 70ºC



Description

  • The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF.
  • The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
  • The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings

10G SFP+ 1550nm 80km Transceiver Fiber Optic Transceiver Module 0



Recommended Operating Conditions

10G SFP+ 1550nm 80km Transceiver Fiber Optic Transceiver Module 1



Optical and Electrical Characteristics

10G SFP+ 1550nm 80km Transceiver Fiber Optic Transceiver Module 2








Tags:

Optical Transceiver Module

Fiber Optic Transceiver

Fiber Optical Transceiver Module
