| Model Number: | MK3Q-ERTE-01 |
| MOQ: | 10pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10Kpcs |
| Attribute | Value |
|---|---|
| Optowix PN | MK3Q-ERTE-01 |

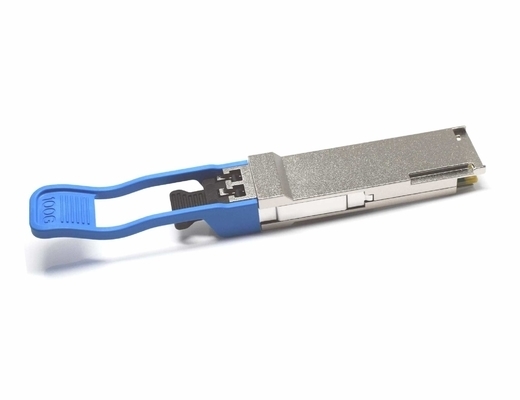

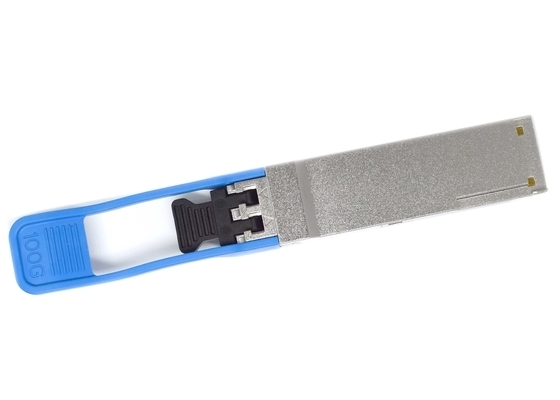

| Product Name | 100G QSFP28 DML APD Single-mode 40km Optical Transceiver Module |
| SpeedRate | 100G |
| Distance | 40km |
| Interface | LC duplex |
| Part Number | Product Description |
|---|---|
| MK3Q-ERTE-01 | QSFP28, 100G, DML APD, Single-mode, 40km, -40ºC ~ 85ºC |
MK3Q-ERTE-01 is designed for 40km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial interface. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.
| Parameter | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| Storage Temperature | TS | -40 | 85 | °C |
| Maximum Supply Voltage | VCC | -0.5 | 3.6 | V |
| Operating Relative Humidity | RH | 85 | % |
| Parameter | Symbol | Min. | Typ | Max. | Unit | Notes |
|---|---|---|---|---|---|---|
| Operating Case Temperature | Top | -40 | 85 | °C | ||
| Power Supply Voltage | VCC | 3.13 | 3.3 | 3.47 | V | |
| Power Supply Current | ICC | 1.67 | A | |||
| Maximum Power Dissipation | PD | 5.5 | W | |||
| Aggregate Bit Rate | BRAVE | 103.125 | Gb/s | |||
| Lane Bit Rate | BRLANE | 25.78125 | Gb/s | |||
| Transmission Distance | TD | 40 | km | |||
| Coupled fiber | Single mode fiber | 9/125um SMF | |||||
