| Brand Name: | Optowix |
| Model Number: | 100G CFP2 to QSFP28 Adapter |
| MOQ: | 10pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10Kpcs |
| Attribute | Value |
|---|---|
| Optowix PN | MW1Q-LR00 |
| Product Name | 100G CFP2 to QSFP28 Adapter |
| Standards | Proprietary protocol and density application |
| Features | Compliant to CFP2 Hardware Specification Version 1.0 |
| Part Number | Product Description |
|---|---|
| MW1Q-LR00 | 100G CFP2 to QSFP28 Adapter, 0ºC ~ 70ºC |

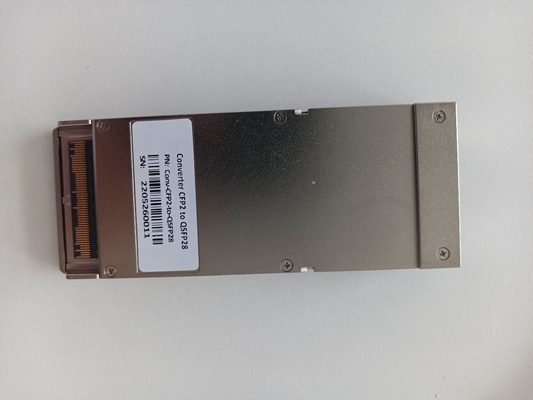

The 100G CFP2 to QSFP28 Adapter module is a four-Channel, high performance, hot pluggable, and interconnect solution supporting 100G Ethernet and Telecom. The adapter converts a CFP MSA interface to 1-port of 100GE QSFP28.It is compliant with the CFP MSA. 100G CFP2 to QSFP28 Adapter integrates four data lanes in each direction with operating at up to 28Gbps per lane. The adapter without the FEC (Forward Error Correction) and supports 100G QSFP28 LR4/ER4. When the 100GE network equipment's CFP2 port has FEC function, it can support 100G QSFP28 SR4/PSM4/CWDM4/CLR4.
| Parameter | Symbol | Min | Typ | Max | Unit | Note |
|---|---|---|---|---|---|---|
| Operating Case Temperature | Top | 0 | 70 | °C | ||
| Power Supply Voltage | VCC | 3.13 | 3.3 | 3.47 | V | |
| Data Rate Per Lane | fd | - | 25.78125 | 27.952 | Gbps | |
| Power Dissipation | Pm | 2 | W | |||
| Low Power Mode Dissipation | Plow | 2 | W | |||
| Aggregate Bit Rate | BRaggr | 103.125 | 111.8 | Gbps |
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Storage Temperature Range | Ts | -20 | 85 | °C | |
| Maximum Supply Voltage | VCC | -0.5 | 3.6 | V | |
| Input Voltage | Vin | -0.3 | Vcc+0.3 | V | |
| Relative Humidity | Rh | 5 | 85 | % |
Note: Exceeding any one of these values may destroy the device immediately
