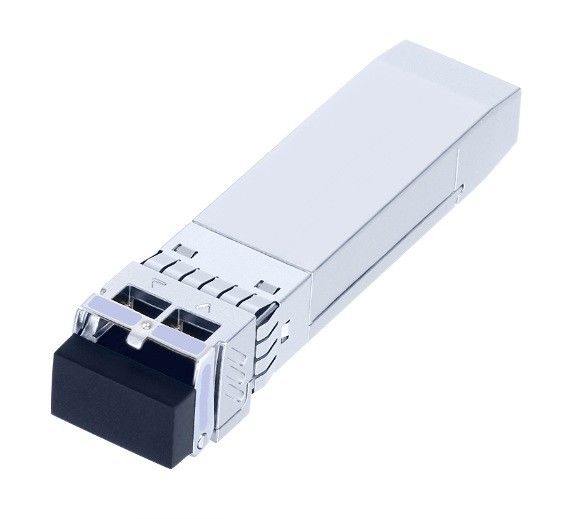

10G SFP+ CWDM 1470nm~1610nm 40km Transceiver Fiber Optic Transceiver Module

Name: 10G SFP+ CWDM 1470nm~1610nm 40km Transceiver Fiber Optic Transceiver Module
Brand: Wuhan Optowix Co.,ltd.
SKU: MF3H-CWTE-Cxx
Availability: InStock

Brand Name:	Optowix
Model Number:	MF3H-CWTE-Cxx
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10Kpcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Optowix PN:

MF3H-CWTE-Cxx

Product Name:

10.3Gbps SFP+ CWDM Transceiver, Single Mode, 40km Reach, Module

SpeedRate:

10G

Distrance:

40km

Interface:

Duplex LC

Wavelength:

CWDM, 1470nm~1610nm

Environment:

-40ºC ~ 85ºC

Packaging Details:

ESD plastic case

Supply Ability:

10Kpcs

Product Description

10.3Gbps SFP+ CWDM Transceiver, Single Mode, 40km Reach

Features

Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
CWDM Cooled EML laser and PIN photodiode, Up to 40km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature: Industrial: -40 to +85°C

Applications

10Gbps CWDM Optical systems
10GBASE-ER at 10.3125Gbps
10GBASE-EW at 9.953Gbps
LTE systems
Other Optical links

Standards

SFP+ MSA
SFF-8472

Ordering Information

Part Number	Product Description
MF3H-CWTE-Cxx	SFP+ 10G CWDM 1470nm~1610nm 40km -40ºC ~ +85ºC,

λC Wavelength Guide
Code	λC	Unit	Code	λC	Unit	Code	λC	Unit	Code	λC	Unit
C11	1470	nm	C12	1490	nm	C13	1510	nm	C14	1530	nm
C15	1550	nm	C16	1570	nm	C17	1590	nm	C18	1610	nm

Description

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF.
The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Absolute Maximum Ratings

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case	Tc	-40		+85	°C
Power Supply Voltage	Vcc	3.135	3.30	3.465	V
Power Supply Current	Icc			320	mA
Data Rate		1.0	10.3	10.7	Gbps

Optical and Electrical Characteristics
