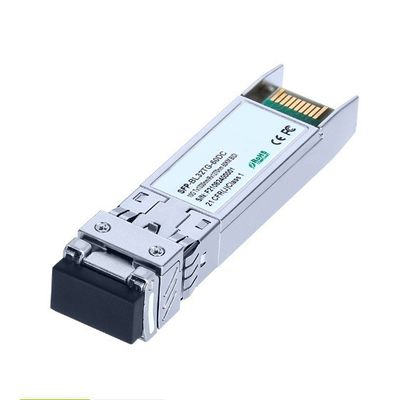

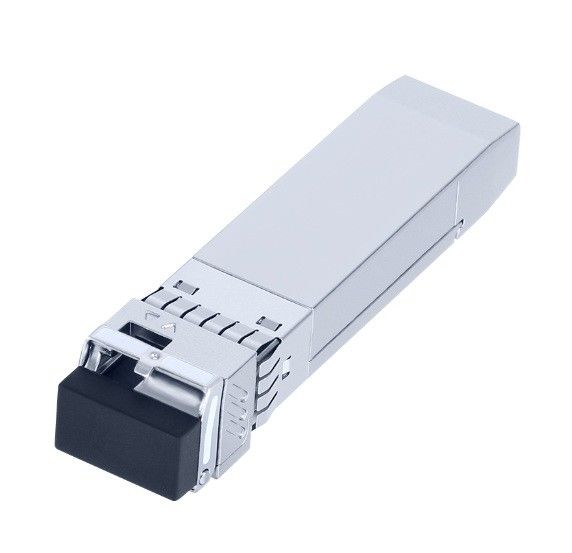

10G SFP+ BIDI Tx1330nmRx1270nm 60km Transceiver Fiber Optic Transceiver Module

Name: 10G SFP+ BIDI Tx1330nmRx1270nm 60km Transceiver Fiber Optic Transceiver Module
Brand: Wuhan Optowix Co.,ltd.
SKU: MF3H-BDTF-B32
Availability: InStock

Brand Name:	Optowix
Model Number:	MF3H-BDTF-B32
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10Kpcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Optowix PN:

MF3H-BDTF-B32

Product Name:

10.3Gbps SFP+ BIDI Transceiver, Single Mode, Module

SpeedRate:

10G

Distrance:

60km

Interface:

Single LC

Wavelength:

Tx1330nm / Rx1270nm

Environment:

-40 To +85°C

Packaging Details:

ESD plastic case

Supply Ability:

10Kpcs

Product Description

10.3Gbps SFP+ Transceiver, Single Mode, 60km Reach

Features

Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1330nm DFB laser and APD photodiode, Up to 60km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature: Industrial: -40 to +85°C

Applications

10Gbps Optical systems
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
LTE systems
Other Optical links

Standards

SFP+ MSA
SFF-8472

Ordering Information

Part Number	Product Description
MF3H-BDTF-B32	SFP+ 10G BIDI Tx1330nm Rx1270nm 60km , -40ºC ~ 85ºC

Description

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 60km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Absolute Maximum Ratings

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case	Tc	-40		+85	°C
Power Supply Voltage	Vcc	3.135	3.30	3.465	V
Power Supply Current	Icc			450	mA
Data Rate		1.0	10.3	10.7	Gbps

Optical and Electrical Characteristics
